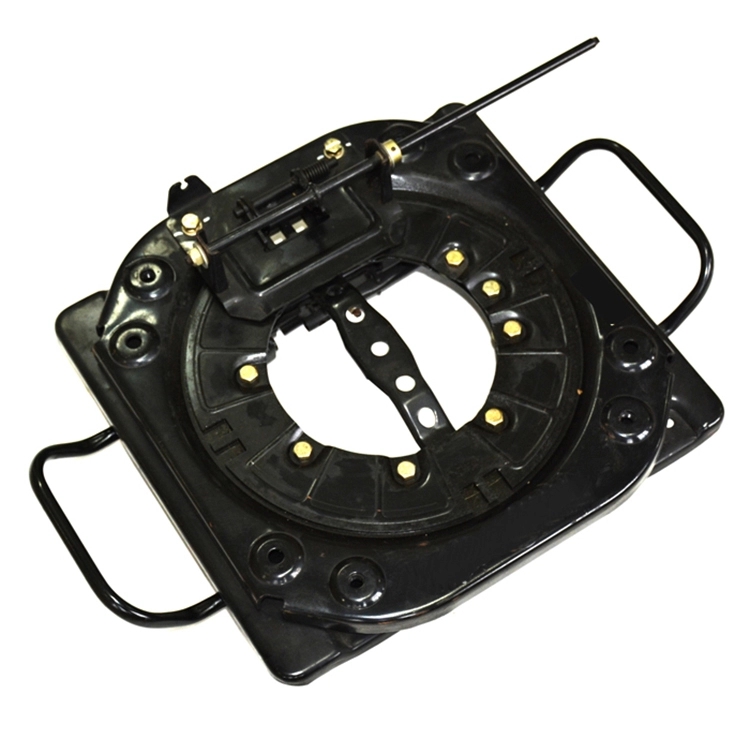

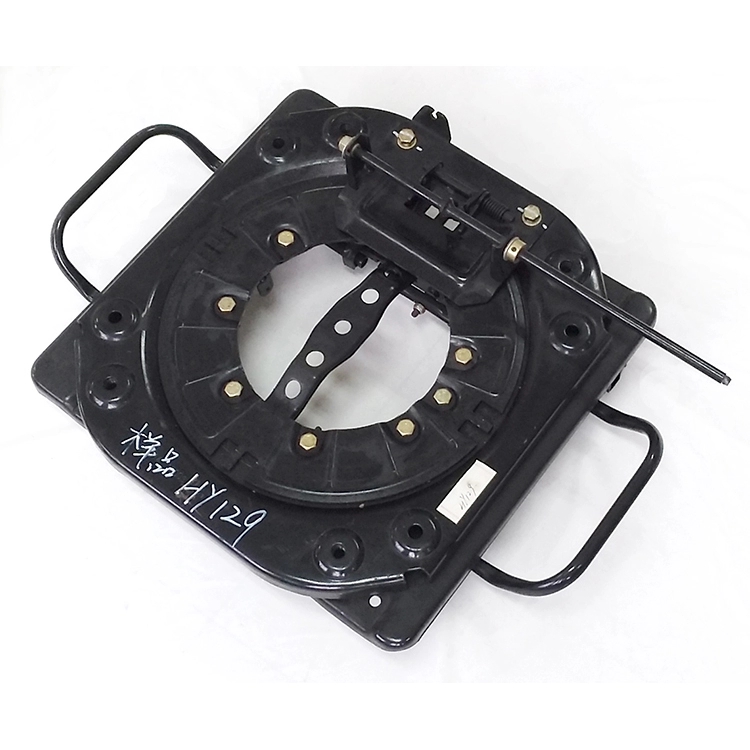

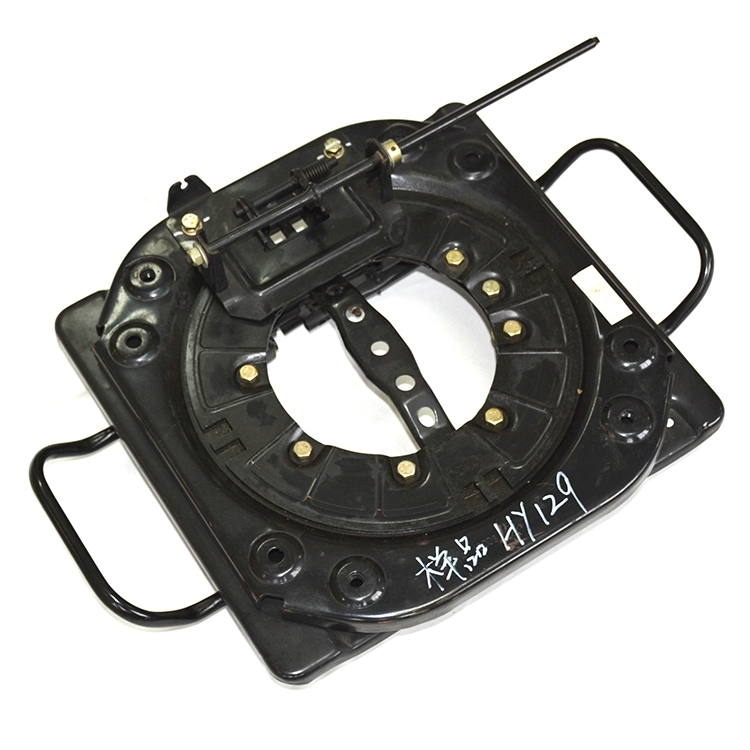

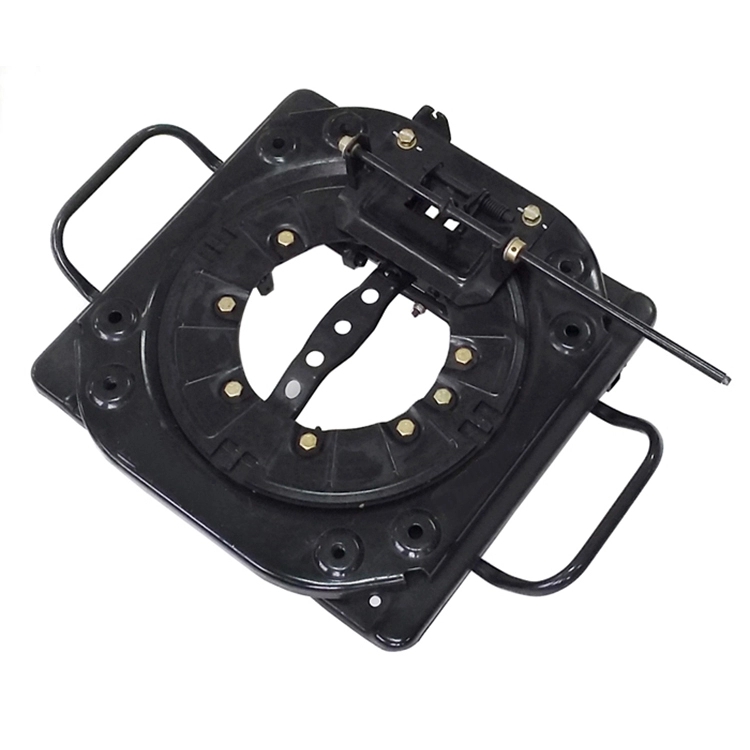

Revolving Structure / turntable Square furniture ball bearing barstool Metal Seat swivel plate

turntable Square furniture ball bearing barstool Metal Seat swivel plate

Upper and lower mounting dimensions: 297mm*203.5mm

Bottom: 297 mm * 230 mm

Rotation range is 0°~360°

Number of rotation positioning gears 4

Rotation positioning Angle 90°

Slide rail length slide shell 340mm slide core 340mm

Forward stroke: 120mm

Backward stroke 200mm

Pitch X

Locking mode double locking

Matching model Of The Montpike commercial vehicle
